Quick Details

  • Condition: New
  • Type: Arc Furnace
  • Usage: Melting Furnace
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: HT
  • Model Number: HX-5
  • Voltage: 380v
  • Power(W): Furnace Capacity
  • Dimension(L*W*H): Depands
  • Weight: 34t
  • Certification: CE & ISO
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Steel capacity: 5t
  • Transformer nominal capacity: 3200KVA
  • Transformer primary voltage: 6KV 10KV
  • Tapping type: EBT taping

Packaging & Delivery

Packaging Details Standard export packing or on requirement.
Delivery Time 3 months



Product Description

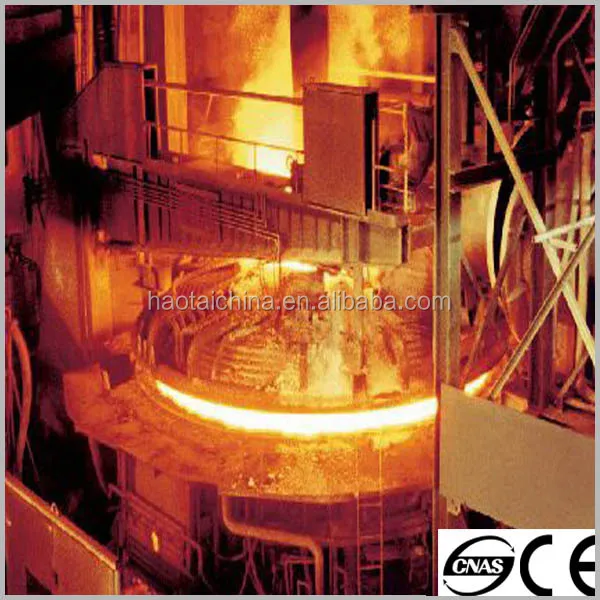

Application of EBT tap electric arc furnace

     Steelmaking electric arc furnace inputs electric energy into furnace by graphite electrode. Electric arc producing between electrode tips and furnace burden is used as heat source to smelt steel. The heat source of electric arc furnace is electric energy. Atmosphere inside the furnace can be adjusted, which is helpful to melt steels containing easier oxidation of elements. SH series three-phase steelmaking arc furnace is used to smelt high-quality carbon steel and all kinds of ferro-alloy steel. The designed volume is from 0.5-125t. And the rate power of transformer can reach 100000KVA



Equipment constitution

       Electric arc furnace transformer, short net, electrode lifting device, current conducting arm, furnace lid, furnace lid lifting and rotary device, furnace body, furnace titling device, ladle cart, water cooling system, compressed air system, hydraulic system, charging system, high voltage electric system, low voltage electric control system, basic automation and computer control system.



Main technical data

Model   Furnace shell I.D.(mm)

Steel capacity

(t)

Transformer normal capacity

(KVA)

Transformer primary voltage

(KV)

Transformer secondary voltage(KV)

Electrode Diameter

(mm)

Electrode circle diameter

(mm)

Cooling water consumption

(m³/h)

Weight

(t)

HX-0.521000.53206 10200-98Φ150 Φ45085
HX-1.525001.512506 10210-104 Φ200 Φ650149
HX-33000322006 10220-110 Φ250 Φ7501524
HX-53400532006 10240-121 Φ300 Φ8501534
HX-103500105000 800010260-139 Φ350 Φ9502074
HX-15380015800010260-139Φ350 Φ10002585
HX-2042002010000 1250035280-100 314-116 Φ400 Φ10502598
HX-3046003012500 16000 2500035 110314-116 353-137 Φ450 Φ115053178
HX-4050004020000 3150035 110392-158 489-201 Φ500 Φ125080205
HX-5052005025000 31500 4000035 110436-184 547-223 Φ500 Φ1300133224
HX-6055006040000 5000035 110547-223 610-250 Φ550 Φ1350150252
HX-7558007550000 6300035 110610-250 473-277 Φ600 Φ1450180274
HX-100640010050000 63000 8000035 110673-277 760-310 Φ600 Φ1450230294
HX-125680012563000 80000 100000 35 110760-310 880-330 Φ650 Φ1500260330
